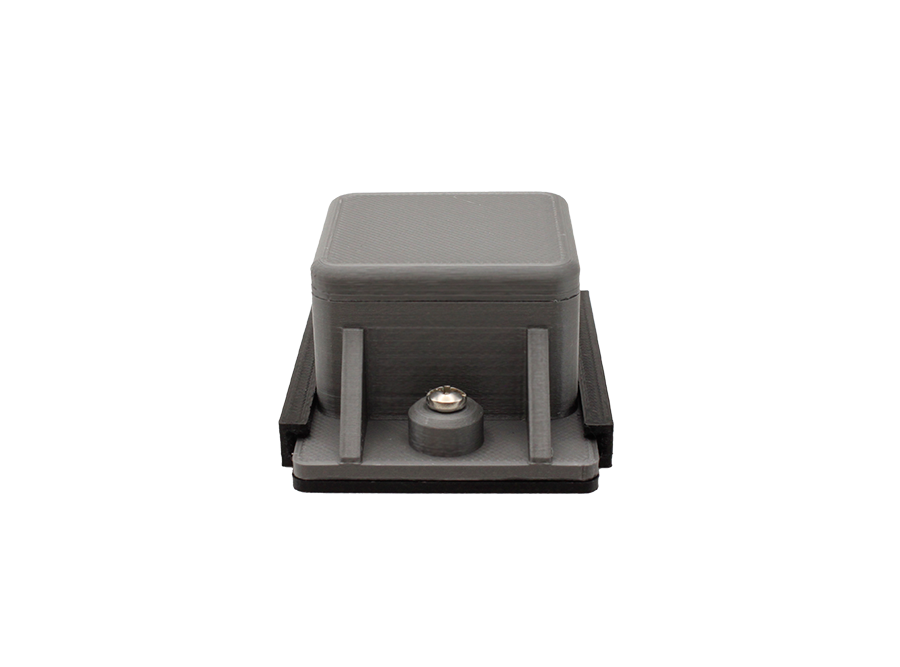

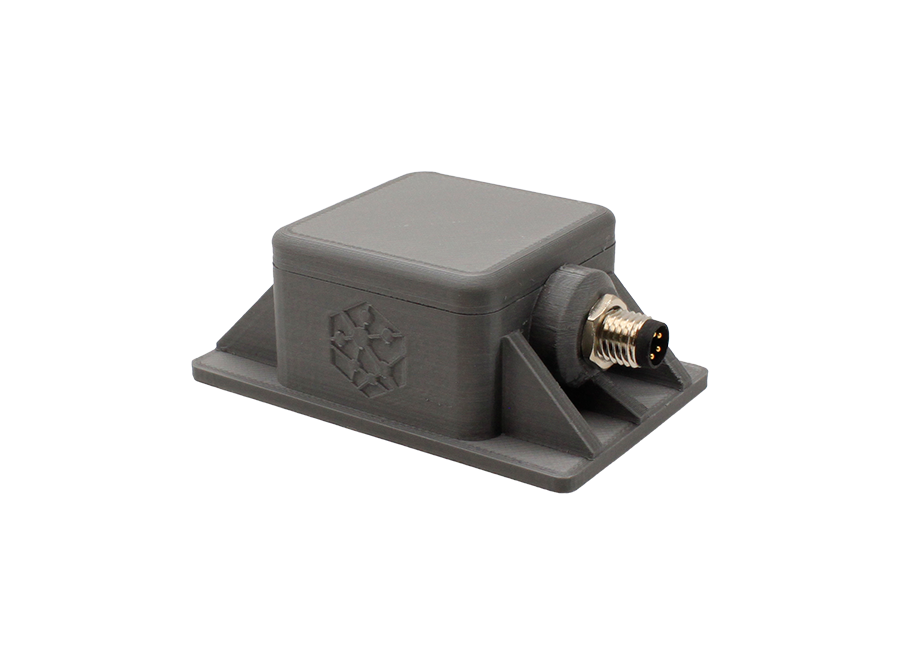

RTS-100 Liquid Level Sensor
The RTS-100 liquid level sensor is designed for use in recreational vehicles, campers, or anywhere a compact, low power, highly accurate liquid level measurement is needed. The sensor is impervious to corrosion, build up, and mixed materials. It features advanced digital signal processing to always provide an accurate level even when other competitive products fail.
The sensor operates through the tank wall requiring no holes or openings of any kind. It is mounted on the exterior of the liquid containing tank.
*Volume pricing available - contact us for details
**Patent Pending
The RTS-100 liquid level sensor is designed for use in recreational vehicles, campers, or anywhere a compact, low power, highly accurate liquid level measurement is needed. The sensor is impervious to corrosion, build up, and mixed materials. It features advanced digital signal processing to always provide an accurate level even when other competitive products fail.
The sensor operates through the tank wall requiring no holes or openings of any kind. It is mounted on the exterior of the liquid containing tank.
*Volume pricing available - contact us for details
**Patent Pending
The RTS-100 liquid level sensor is designed for use in recreational vehicles, campers, or anywhere a compact, low power, highly accurate liquid level measurement is needed. The sensor is impervious to corrosion, build up, and mixed materials. It features advanced digital signal processing to always provide an accurate level even when other competitive products fail.
The sensor operates through the tank wall requiring no holes or openings of any kind. It is mounted on the exterior of the liquid containing tank.
*Volume pricing available - contact us for details
**Patent Pending
The RTS-100 utilizes the latest advancements in technology to deliver uncompromising accuracy and dependability. The sensor offers the following features:
Small size: 1.73” x 2.75” x 1.22” (W x L x H)
Low power: <20 mA
Light weight: 2 oz
Resolution: 2.5 ~ 5 mm
Tank Height: 4” to 36”
Does not require any holes or openings to measure the liquid level in the tank
Simple adhesive attachment to tanks
Available with the following interfaces: Analog (Resistive), LIN 2.2, CAN 2.0
Power requirement: 9 ~14 VDC
Note: Technical specifications subject to change without notice.
